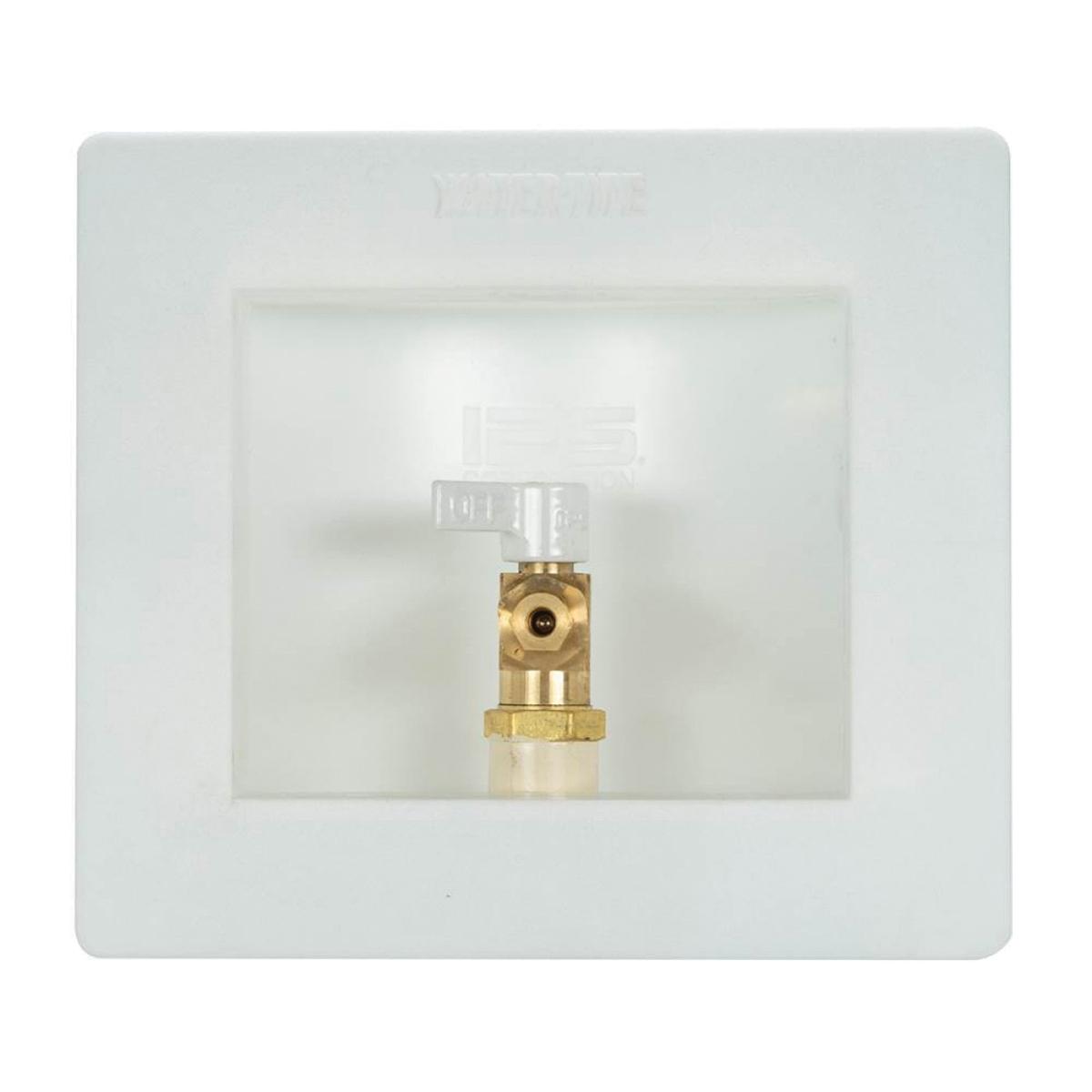

The Water-Tite square ice maker outlet box features a special contoured design that offers quick and easy valve access. Its one-piece box and flange construction delivers ideal mounting stability, requiring no additional support framing. This outlet box includes one pre-installed lead-free brass valve, which complies with NSF 61-G requirements. The Water-Tite square ice maker outlet box comes with a snap-on faceplate that measures 8-1/4 in W x 7-5/16 in H and is able to accommodate up to 3/4 in drywall. Choose from a standard pack with an attached faceplate or a contractor pack with an unattached faceplate.
IPS® Ice Maker Outlet Box, AB Series, Model: AB9701, 1/2 in Connection, CPVC Connection, 5-3/4 in Box Width, 3-1/2 in Box Depth, 4-7/8 in Box Height, Plastic Box, 8-1/4 in Faceplate Width, 7-15/16 in Faceplate Height, Additional Information: Low Lead Square
| Additional Information | : | Low Lead Square |
| Box Depth | : | 3-1/2 in |
| Box Height | : | 4-7/8 in |
| Box Material | : | Plastic |
| Box Width | : | 5-3/4 in |
| Connection Size | : | 1/2 in |
| Connection Type | : | CPVC |
| Faceplate Height | : | 7-15/16 in |
| Faceplate Width | : | 8-1/4 in |
| Model | : | AB9701 |
| Series | : | AB Series |
- Lead-free
- Rough opening 5-3/4 in width x 4-7/8 in height x 3-1/2 in depth, faceplate dimension 8-1/4 in width x 7-15/16 in height
- One-piece box and flange design needs no additional support framing nor support framing labor
- Snap-on faceplate accommodates up to 3/4 in drywall
- Contour box design allows easy valve access
- Products covered by one or more of the following patents D411,870, D471,960
