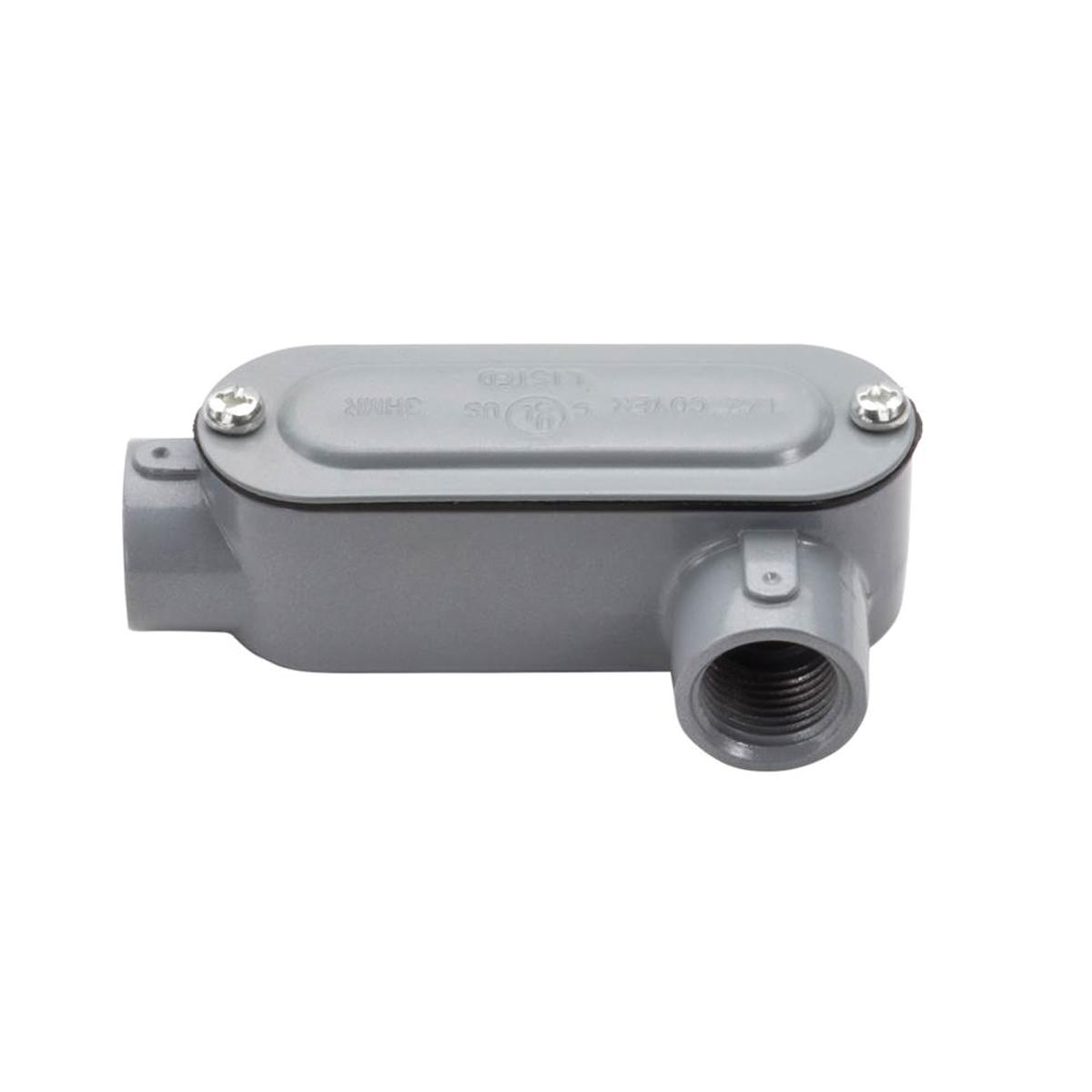

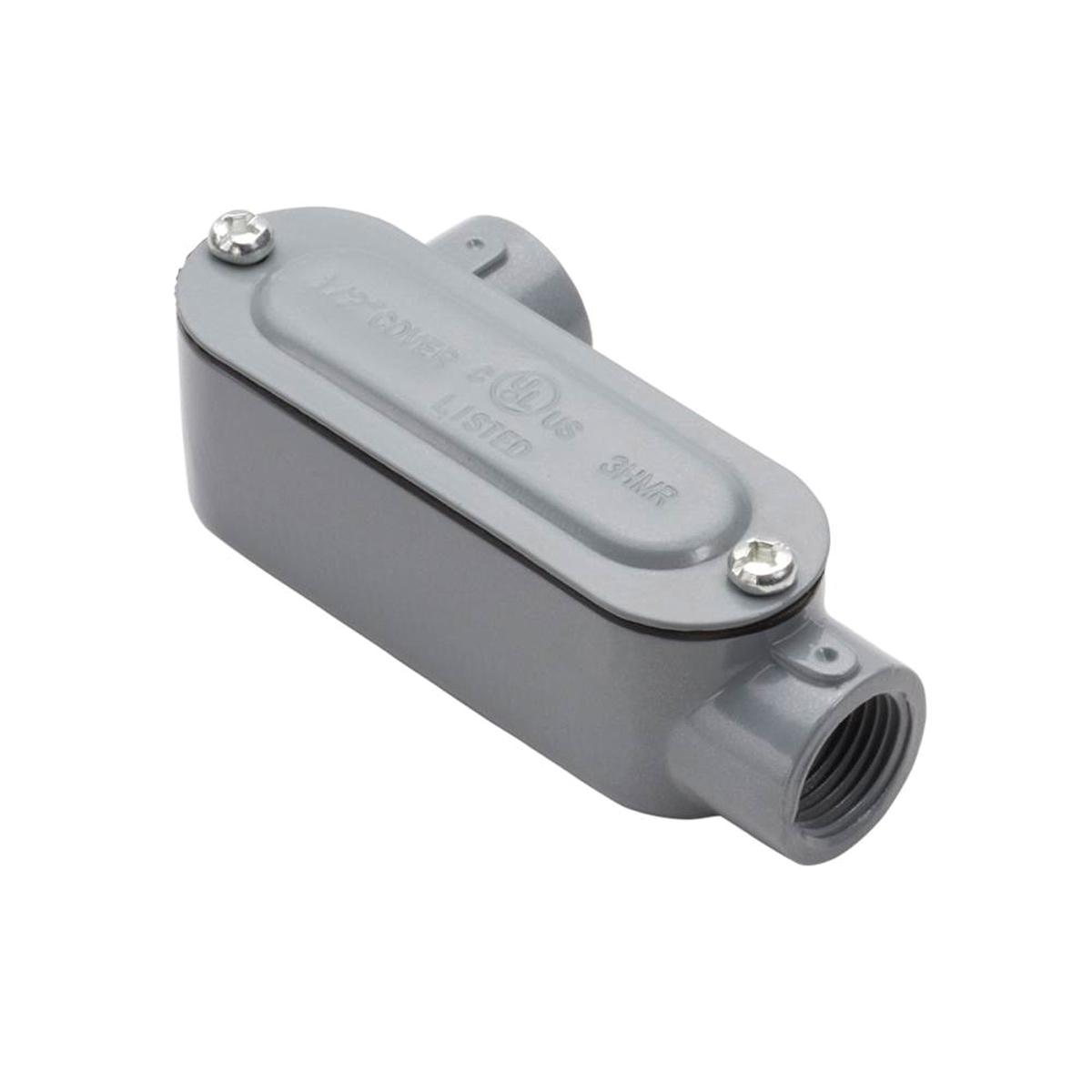

TOPAZ® conduit bodies rigid threaded LL type, with cover and gasket is features copper-free aluminum construction. LL type conduit bodies permit 90 deg left bends in conduit systems, provide easy access for splicing and can correct and change direction of conduit runs. Smooth, rounded integral bushings in hubs offers protection for conductor insulation. Excellent ground continuity and corrosion-resistance, lightweight aluminum construction. Cover and watertight gasket ensures weather-proof installations, UL listed.
TOPAZ® Rigid Conduit Body, 1 in Hub, Threaded Connection Type, 6 AWG Wire, Aluminum Body, Steel Cover, Neoprene Gasket, Powder-Coated, 5.915 in Length, 1.9 in Height
| Body Material | : | Aluminum |
| Connection Type | : | Threaded |
| Cover Material | : | Steel |
| Finish | : | Powder-Coated |
| Gasket Material | : | Neoprene |
| Height | : | 1.9 in |
| Hub Size | : | 1 in |
| Length | : | 5.915 in |
| Wire Size | : | 6 AWG |
- Threaded LL type with cover and gasket
- NPT tapered hubs
- Provides access to conductors for pulling, splicing and maintenance
Specification Sheet
