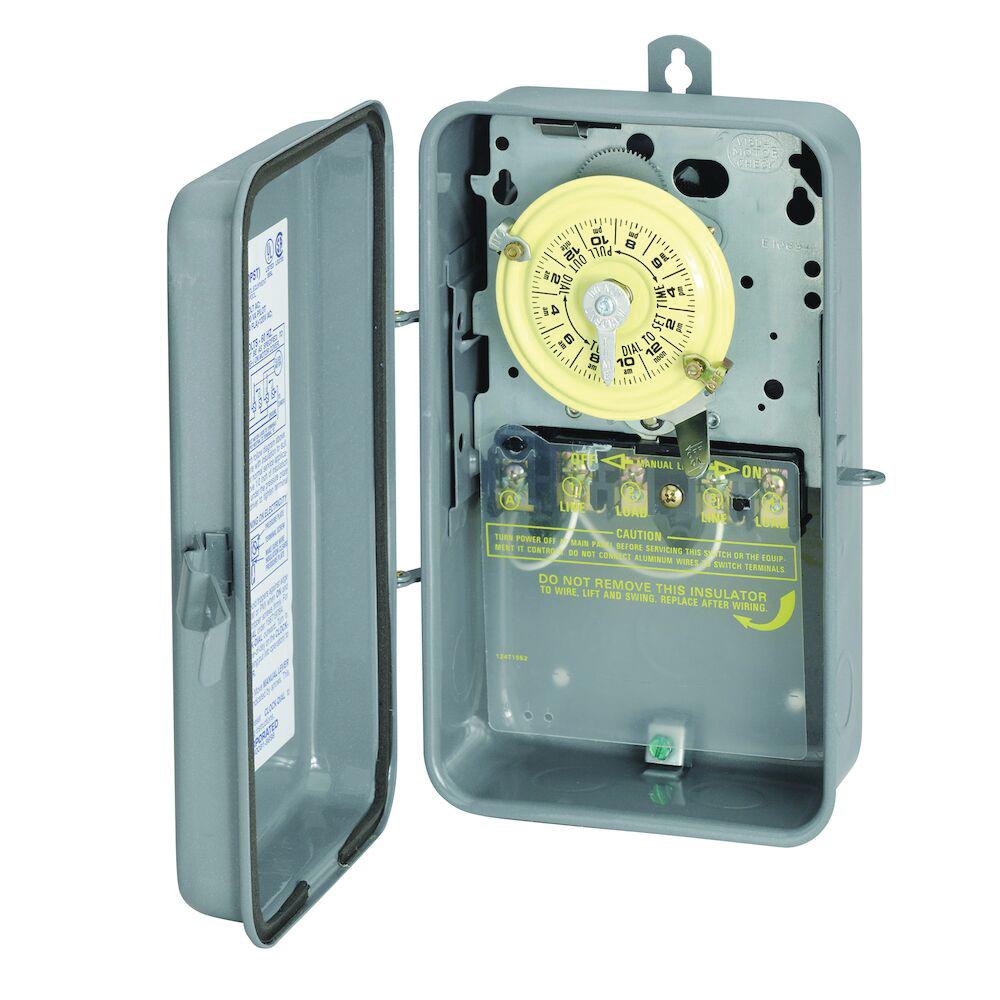

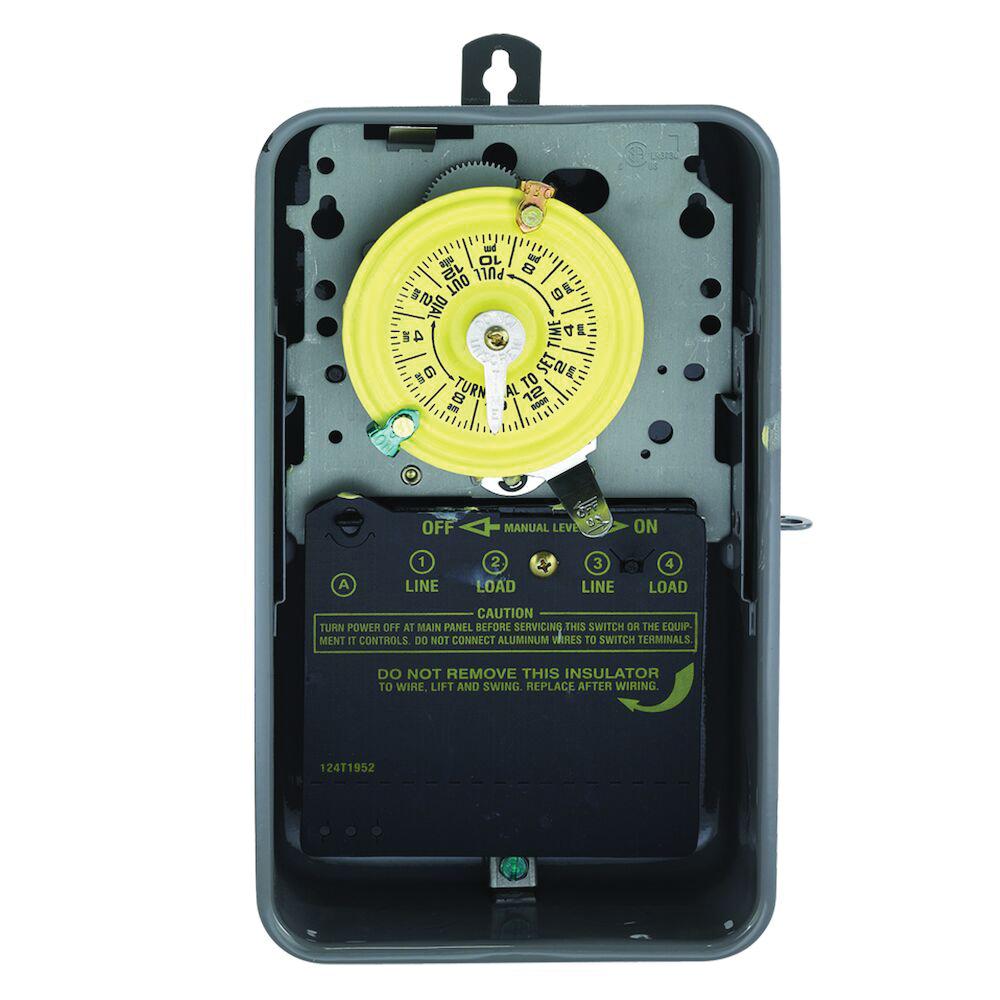

The T100 Series mechanical time switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 on/off operations per day. A manual override switch provides added convenience.
Intermatic® Mechanical Time Switch, Series: T100 Series, 120 VAC, 40 A, 60 Hz, 2 Pole, DPST, 24 hr Time Settings, 1 hr On/Off Ratio, Pilot Duty: 120/240/1000 VAC, 8 to 14 AWG Wire, Metal Enclosure Type Material, 40 to 130 deg F, 10-1/8 in H x 6-1/2 in W x 3-5/8 in D
| Amperage Rating | : | 40 A |
| Contact Configuration | : | DPST |
| Dimensions | : | 10-1/8 in H x 6-1/2 in W x 3-5/8 in D |

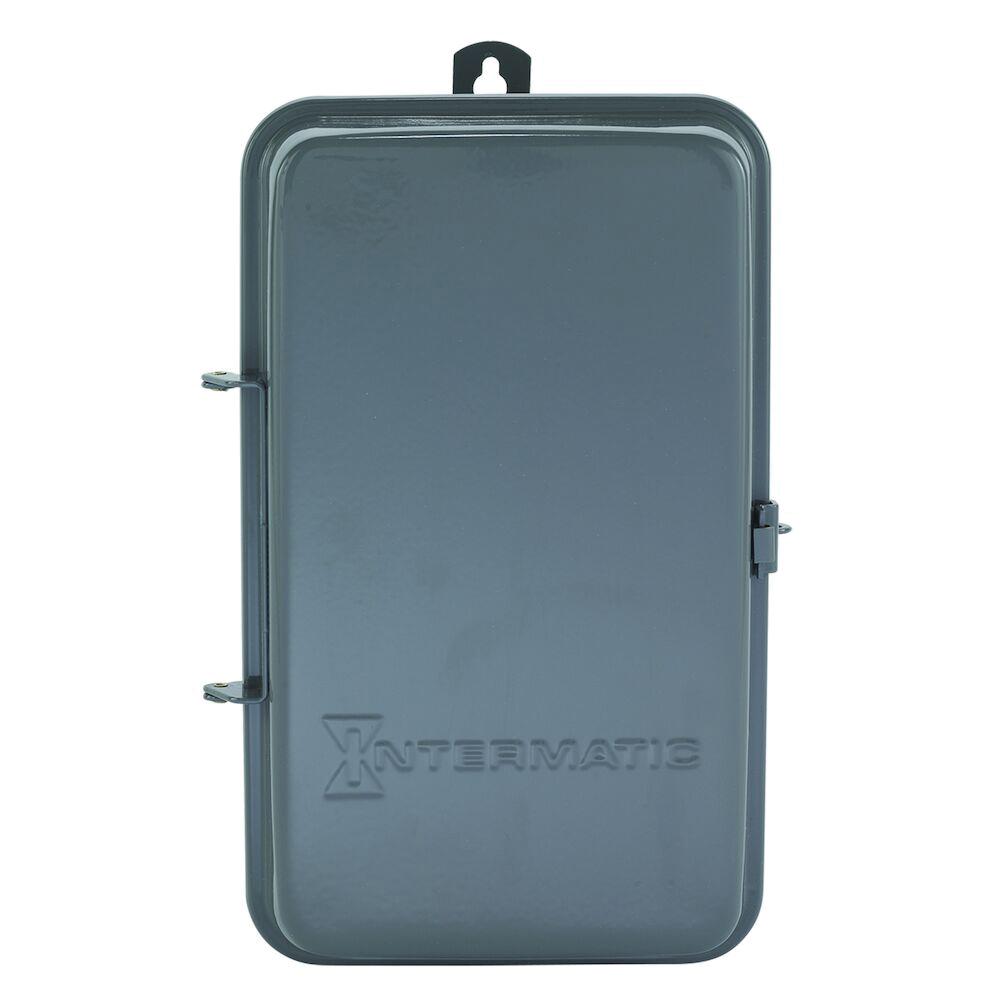

| Enclosure Type Material | : | Metal |
| Frequency Rating | : | 60 Hz |
| Number of Poles | : | 2 |
| On/Off Ratio | : | 1 hr |
| Pilot Duty Rating | : | 120/240/1000 VAC |
| Series | : | T100 Series |
| Temperature Rating | : | 40 to 130 deg F |
| Time Settings | : | 24 hr |
| Voltage Rating | : | 120 VAC |
| Wire Size | : | 8 to 14 AWG |
- Direct 24 hr control of most loads
- Up to 12 on/off operations each day with minimum on/off times of 1 hr
- Manual override
- Can be installed in most intermatic enclosures
