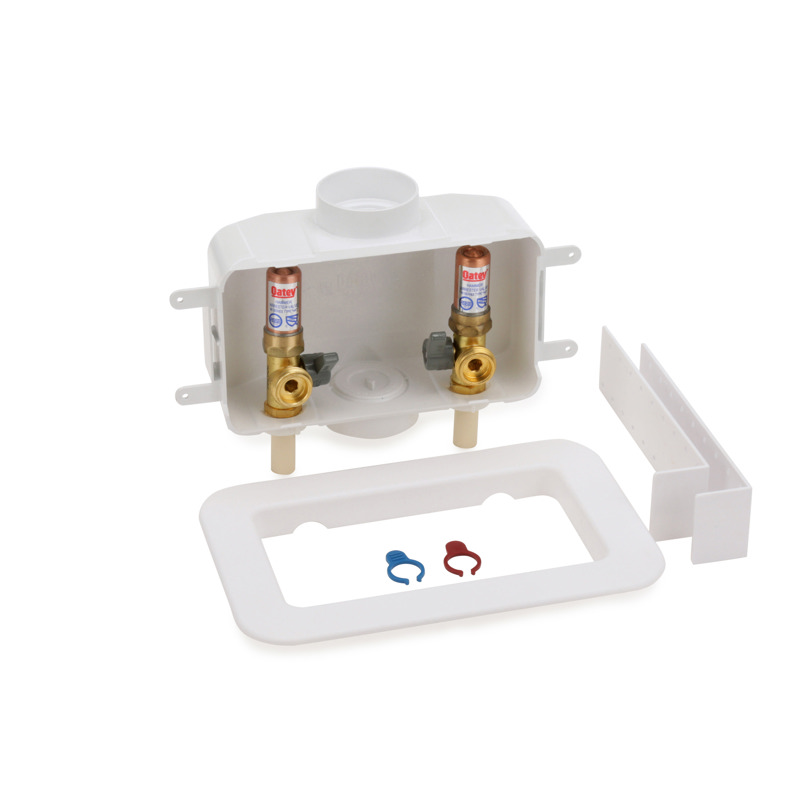

The Oatey® Centro II washing machine outlet box takes up less space, fitting almost anywhere for commercial and residential applications. It is made of durable PVC and can be mounted with the valves on the top or bottom.
Oatey® Centro II Assembled Washing Machine Outlet Box, Centro II Series, 3/4 in, PEX Connection, Box Mounting, PVC, White, 6.38 in H x 10.3 in W x 3.03 in D, Additional Information: 6.71 in H x 10.19 in W Faceplate, 4.46 in H x 7.84 in W Opening Dimensions, Brass Valve Material, 1/4 Turn Valve
| Additional Information | : | 6.71 in H x 10.19 in W Faceplate, 4.46 in H x 7.84 in W Opening Dimensions, Brass Valve Material, 1/4 Turn Valve |
| Color | : | White |
| Connection Type | : | PEX |
| Dimensions | : | 6.38 in H x 10.3 in W x 3.03 in D |
| Material | : | PVC |
| Mounting Type | : | Box |
| Series | : | Centro II Series |
| Size | : | 3/4 in |
- 2 in drain opening fits PVC or ABS SCH 40 DWV pipe
- Compact design is perfect for tight space installation
- Knockout drain caps are located on top and bottom of box to accommodate multiple mounting options and are removed effortlessly for easy installation
- Two quarter-turn valves come installed and can be mounted on top or bottom of box
- Mounting holes enable box to be secured directly to stud on either side with two support brackets made of high impact polystyrene
- Paintable faceplate gives a clean and finished look
- Connects to PEX supply line with F1960 cold expansion connection
- Box made of high impact polystyrene stands up to the roughest job site abuse
