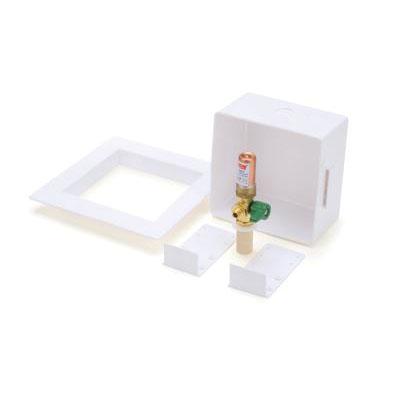

The Oatey® square ice maker box provides quick, safe water supply and shut-off for refrigerator ice makers and water dispensers. It is designed to be used in commercial or residential applications that require supply valves recessed into the wall. Oatey® products have earned the trust of plumbing professionals for over 100 years.
Oatey® Ice Maker Box With Hammer Arrestor, CPVC Connection, 1/4 in Valve, 6.42 in Box Width, 3-1/2 in Box Depth, 6 in Box Height, Polystyrene Box, 8.19 in Faceplate Width, 8.07 in Faceplate Height, 0.95 in Faceplate Thickness, Brass Valve, Additional Information: Square Shape, Low Lead
| Additional Information | : | Square Shape, Low Lead |
| Box Depth | : | 3-1/2 in |
| Box Height | : | 6 in |
| Box Material | : | Polystyrene |
| Box Width | : | 6.42 in |
| Connection Type | : | CPVC |
| Faceplate Height | : | 8.07 in |
| Faceplate Thickness | : | 0.95 in |
| Faceplate Width | : | 8.19 in |
| Valve Material | : | Brass |
| Valve Size | : | 1/4 in |
- Valves comply with requirements of NSF 61, section 9
- Connects to CPVC supply line with solvent weld connection
- Box made of high impact polystyrene stands up to the roughest job site abuse
- Includes one Oatey® quiet pipe hammer arrestor to reduce noise and protect pipes
- Square 6 x 6 icemaker outlet box
- Provides quick, safe water supply and shut-off for refrigerator ice maker and water dispenser
