Metal weatherproof boxes are designed for use in branch circuit wiring in wet, damp or dry locations. Boxes house receptacles, switches and GFCI's. Boxes may also be used as a weatherproof junction box. Closure plugs and installation hardware included.
Titan3™ Weather-Proof Box, 5 Outlets, 4 Plugs, 5 Knockouts, 1/2 in Hub, Threaded Hub, 4 in Diameter, 1-5/8 in Depth, Round Shape, Die Cast Construction, NEMA 3R Enclosure, Ceiling Mounting, 15.8 cu-in Capacity, Hub Connection, Metal Body, Gray, Finish: Powder-Coated, Additional Information: Indoor/Outdoor
| Additional Information | : | Indoor/Outdoor |
| Body Material | : | Metal |
| Capacity | : | 15.8 cu-in |
| Color | : | Gray |
| Connection Type | : | Hub |
| Construction | : | Die Cast |
| Depth | : | 1-5/8 in |
| Diameter | : | 4 in |
| Enclosure Type | : | NEMA 3R |
| Finish | : | Powder-Coated |
| Hub Size | : | 1/2 in |
| Hub Type | : | Threaded |
| Mounting Type | : | Ceiling |
| Number of Knockouts | : | 5 |
| Number of Outlets | : | 5 |
| Number of Plugs | : | 4 |
| Shape | : | Round |
- Cast-in mounting lugs provide fast, secure installation
- 4 in. Round Box Capacity: 15.8 cu. in. (259 mL)

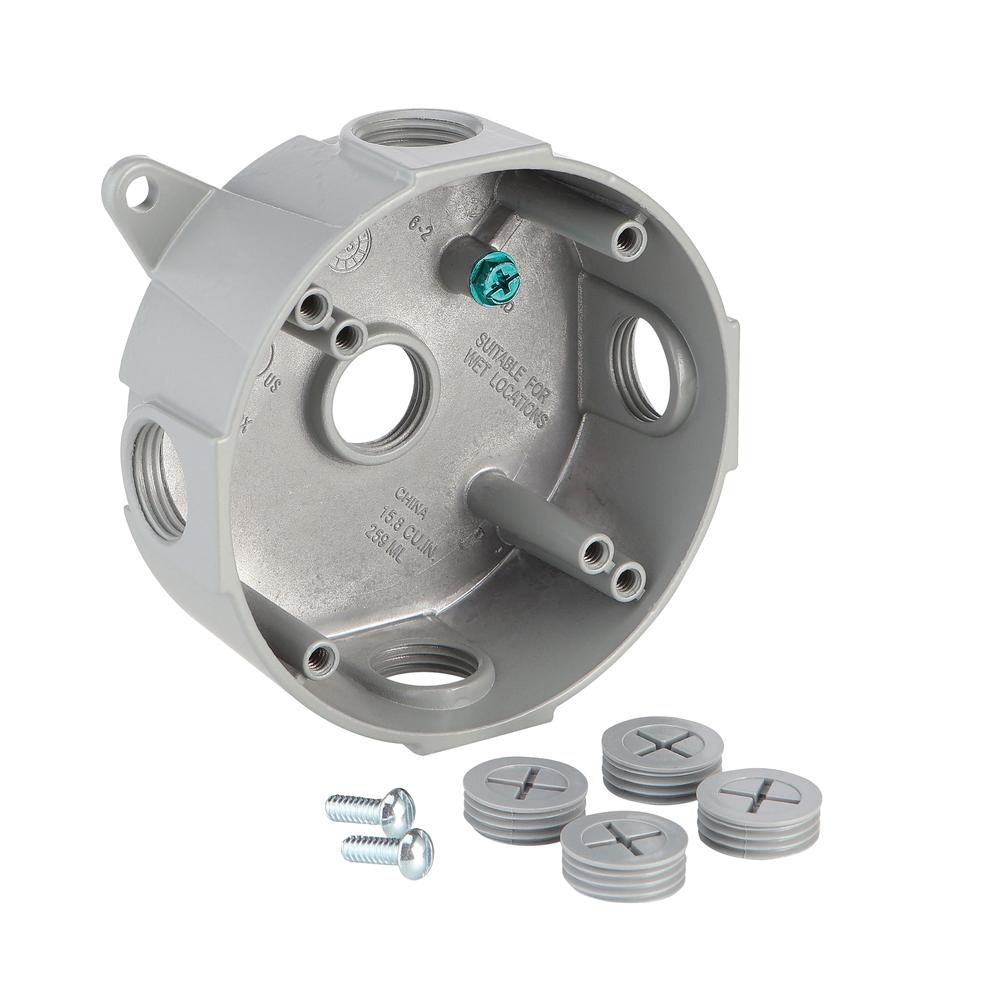

- Includes ground screw, mounting hardware, & closure plugs (4)
- State of the art powder coat finish provides maximum weather ability and scratch-resistance
- Rugged die-cast construction
- Internal hub threads comply with NEMA requirements and will accept 0-1/2 in. threaded fittings and threaded conduit
- Uses 10-24 screws
- NEMA 3R compliant
