Metal weatherproof boxes are designed for use in branch circuit wiring in wet, damp or dry locations. Boxes house receptacles, switches and GFCI's. Boxes may also be used as a weatherproof junction box. Closure plugs and installation hardware included.
Titan3™ Weather-Proof Box, 4 Outlets, 1 Gangs, 2 Plugs, 4 Knockouts, 3/4 in Hub, Threaded Hub, 2.8 in Width, 2 in Depth, Rectangular Shape, Die Cast Construction, NEMA 3R Enclosure, Screw-On Cover, Wall Mounting, 17 cu-in Capacity, Hub Connection, Metal Body, Steel Cover, Gray, Finish: Powder-Coated, Additional Information: Indoor/Outdoor, 4.6 in H Dimensions
| Additional Information | : | Indoor/Outdoor, 4.6 in H Dimensions |
| Body Material | : | Metal |
| Capacity | : | 17 cu-in |
| Color | : | Gray |
| Connection Type | : | Hub |
| Construction | : | Die Cast |
| Cover Material | : | Steel |
| Cover Type | : | Screw-On |
| Depth | : | 2 in |
| Enclosure Type | : | NEMA 3R |
| Finish | : | Powder-Coated |
| Hub Size | : | 3/4 in |
| Hub Type | : | Threaded |
| Mounting Type | : | Wall |
| Number of Gangs | : | 1 |
| Number of Knockouts | : | 4 |
| Number of Outlets | : | 4 |
| Number of Plugs | : | 2 |
| Shape | : | Rectangular |
| Width | : | 2.8 in |
- Screwed-on steel mounting plates offer superior support & install
- 1-Gang Box Capacity: 17 cu. in. (279 mL)

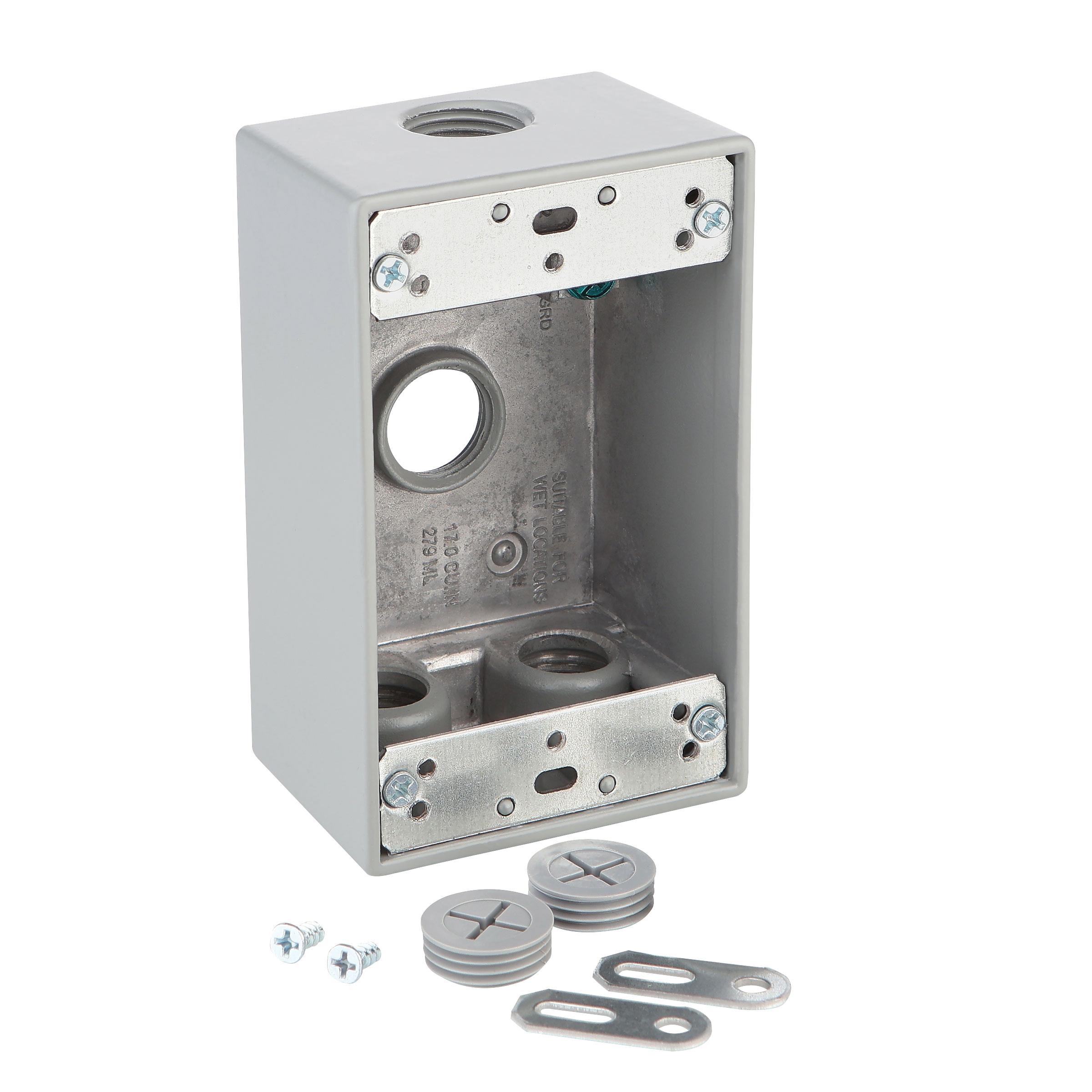

- Includes ground screw, mounting hardware, & closure plugs (2)
- State of the art powder coat finish provides maximum weather ability and scratch-resistance
- Rugged die-cast construction
- Internal hub threads comply with NEMA requirements and will accept 0-3/4 in. threaded fittings and threaded conduit
- NEMA 3R compliant
