Non-metallic weatherproof boxes are rated to protect branch circuits in wet, damp, and/or dry locations. Powder coat finish provides maximum weatherability and scratch resistance. Boxes can serve as a junction box or as housing for receptacles, switches, and GFCIs. Hubs accept all threaded fittings and threaded conduit. Available in both gray and white.

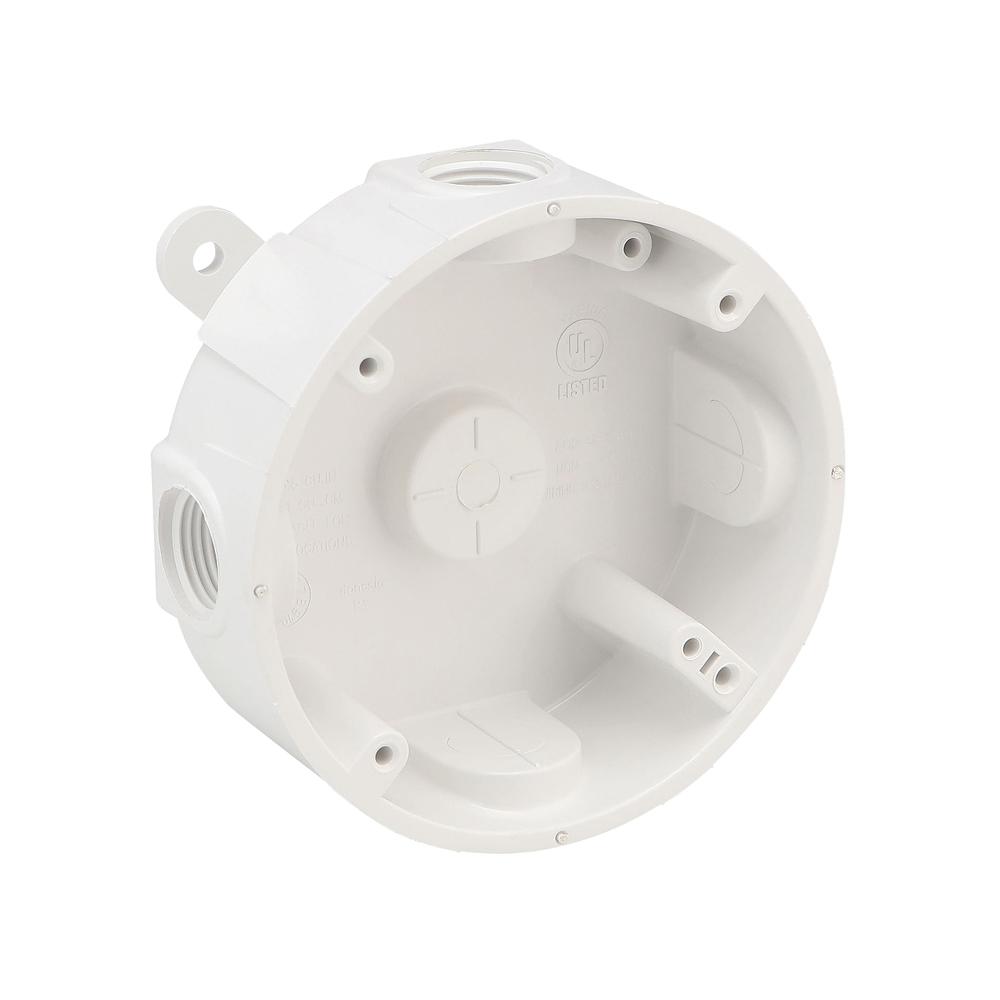

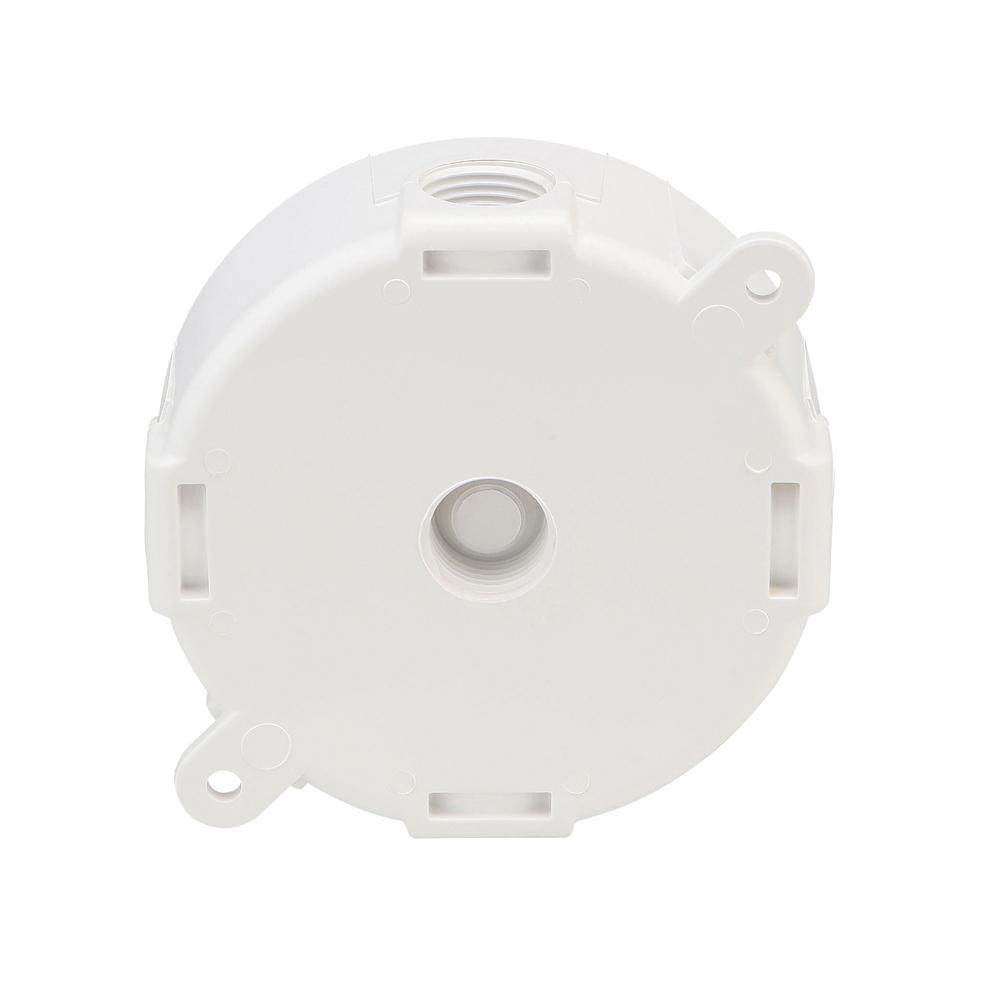

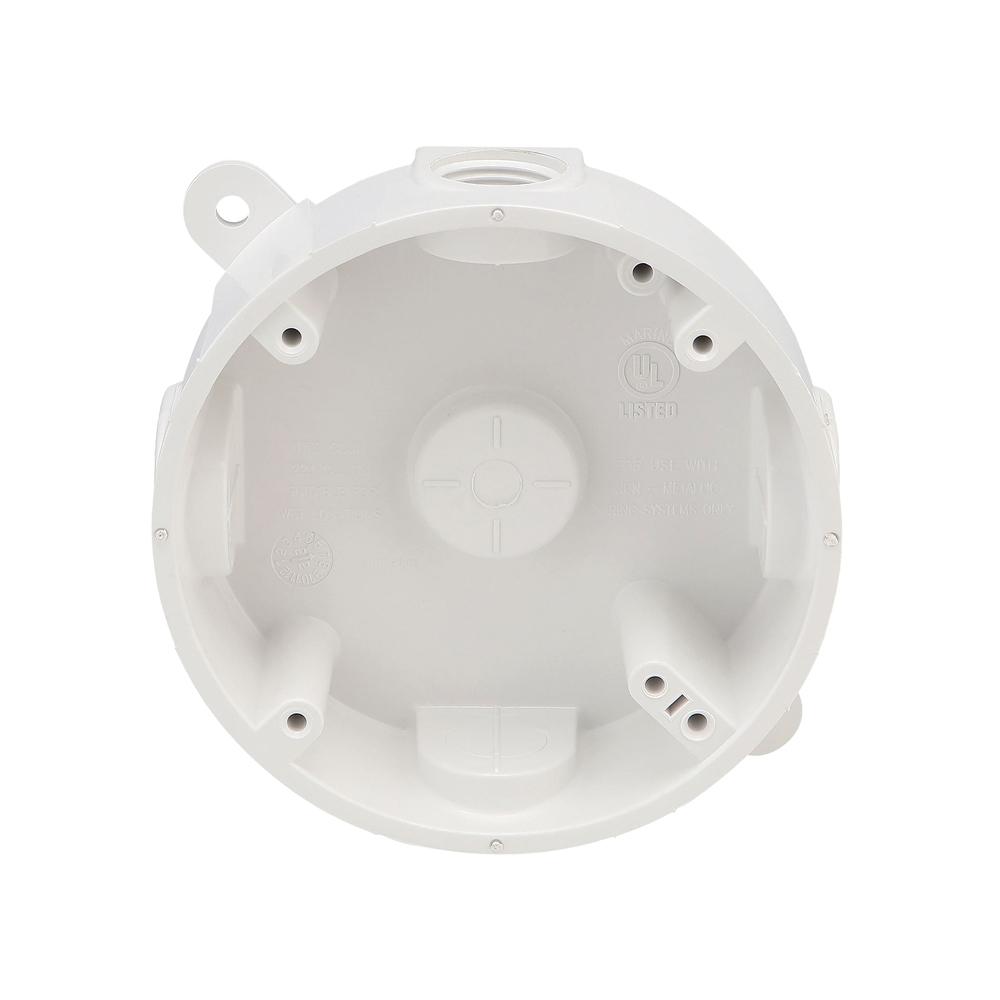

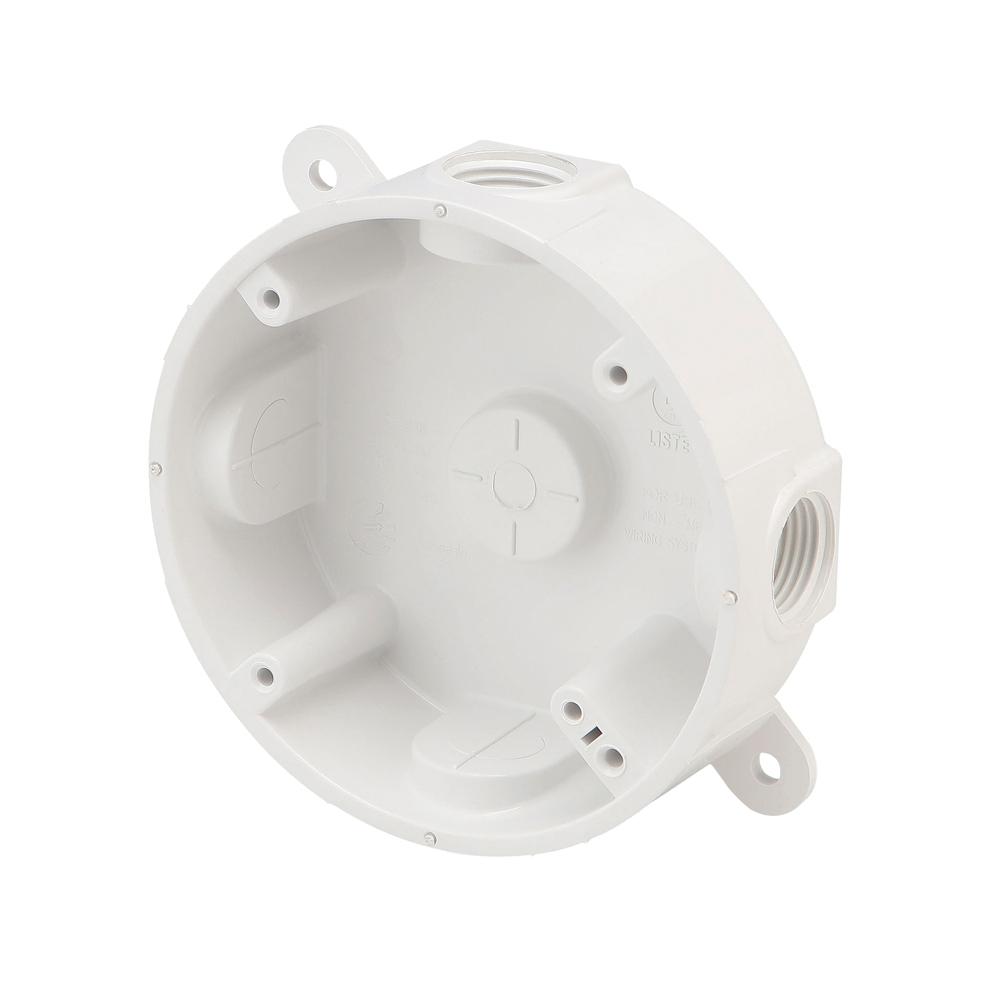

Titan3™ Weather-Proof Box, 5 Outlets, 5 Knockouts, 1/2 in Hub, Threaded Hub, 4 in Diameter, 1-1/2 in Depth, Round Shape, Non-Metallic Construction, NEMA 3R Enclosure, Ceiling Mounting, 12.8 cu-in Capacity, Hub Connection, PVC Body, White, Finish: Powder-Coated, Additional Information: Indoor/Outdoor
| Additional Information | : | Indoor/Outdoor |
| Body Material | : | PVC |
| Capacity | : | 12.8 cu-in |
| Color | : | White |
| Connection Type | : | Hub |
| Construction | : | Non-Metallic |
| Depth | : | 1-1/2 in |
| Diameter | : | 4 in |
| Enclosure Type | : | NEMA 3R |
| Finish | : | Powder-Coated |
| Hub Size | : | 1/2 in |
| Hub Type | : | Threaded |
| Mounting Type | : | Ceiling |
| Number of Knockouts | : | 5 |
| Number of Outlets | : | 5 |
| Shape | : | Round |
- Use with non-metallic wiring systems. Suitable for wet locations
- 4 in. Round Box Capacity: 13.5 cu. in. (220 mL)
- Mounting hardware & closure plug(s) sold separately
- High-impact PVC constructionUses 10-24 screws
- NEMA 3R compliant
- 300 lbs. load carrying capacity
