Metal weatherproof extension rings are designed for use in branch circuit wiring in wet, damp or dry locations. Extension rings house receptacles, switches and GFCI's. Extension rings mounted on boxes may also be used to increase the size of a weatherproof junction box. Closure plugs and installation hardware included.

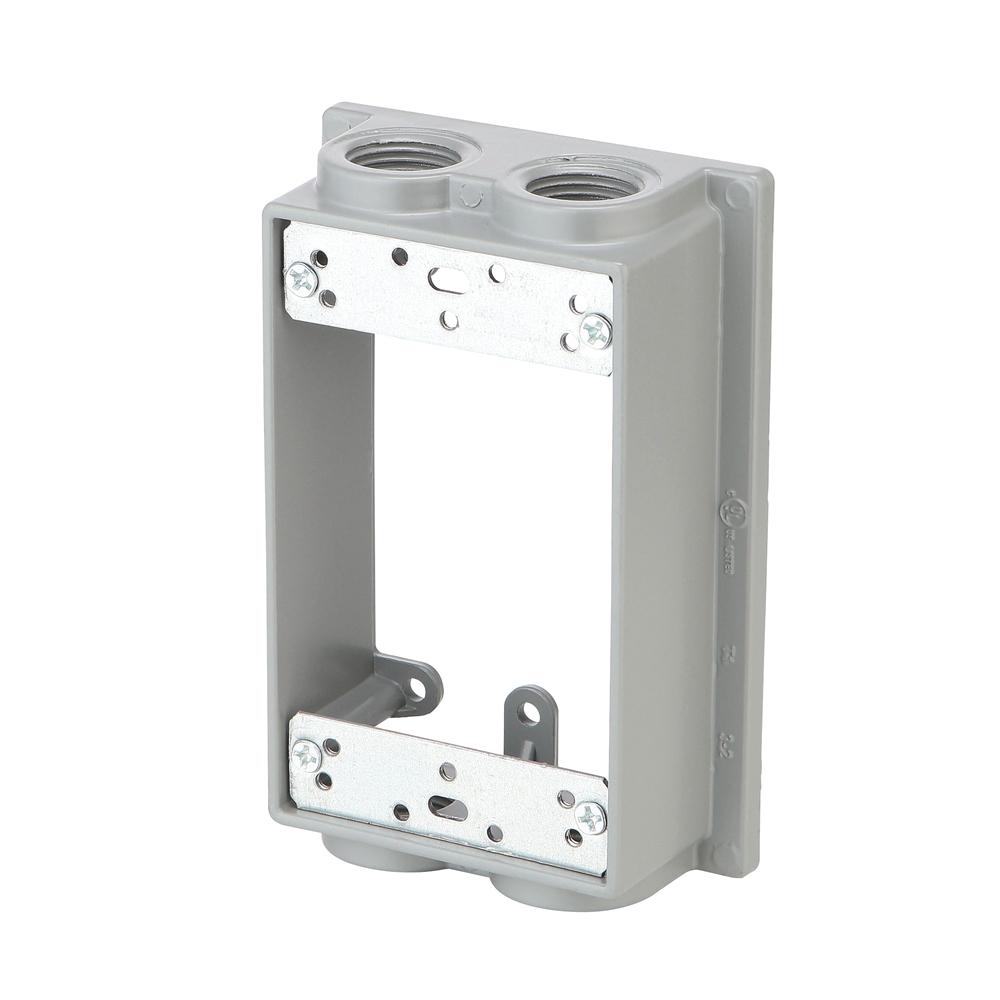

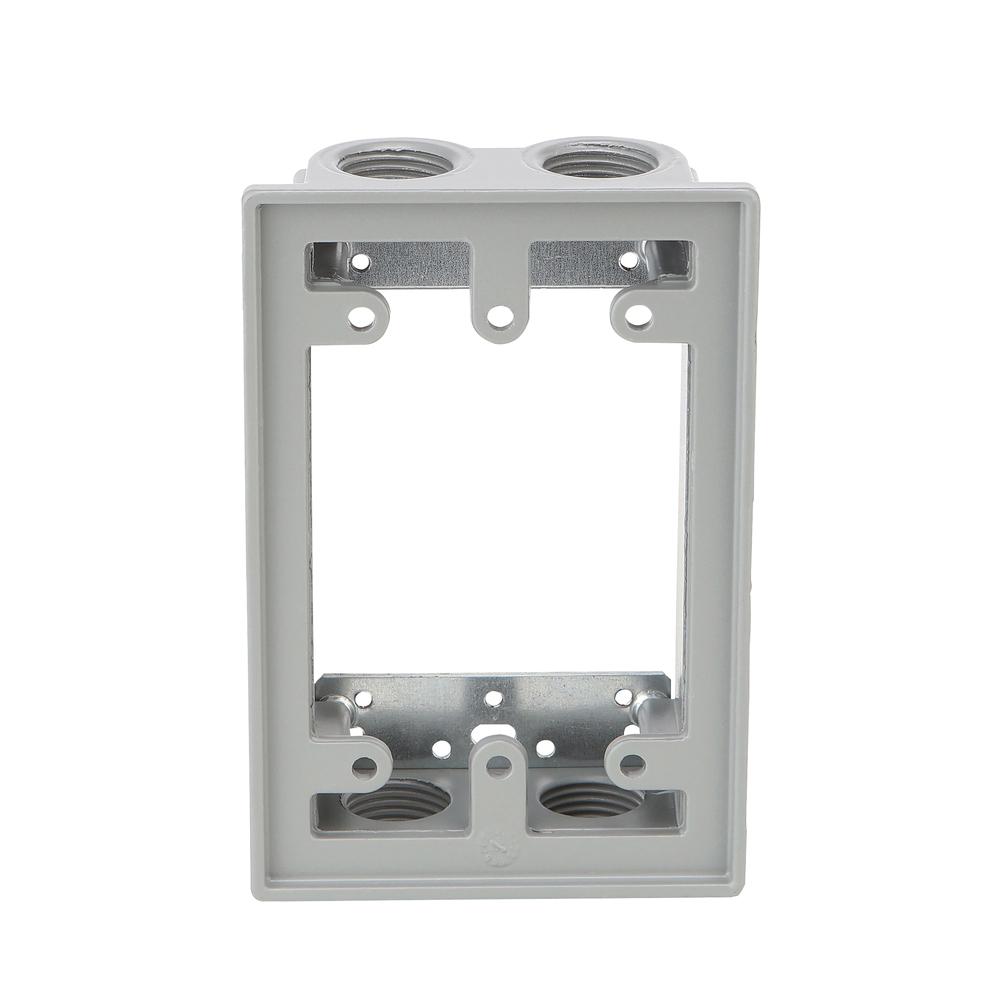

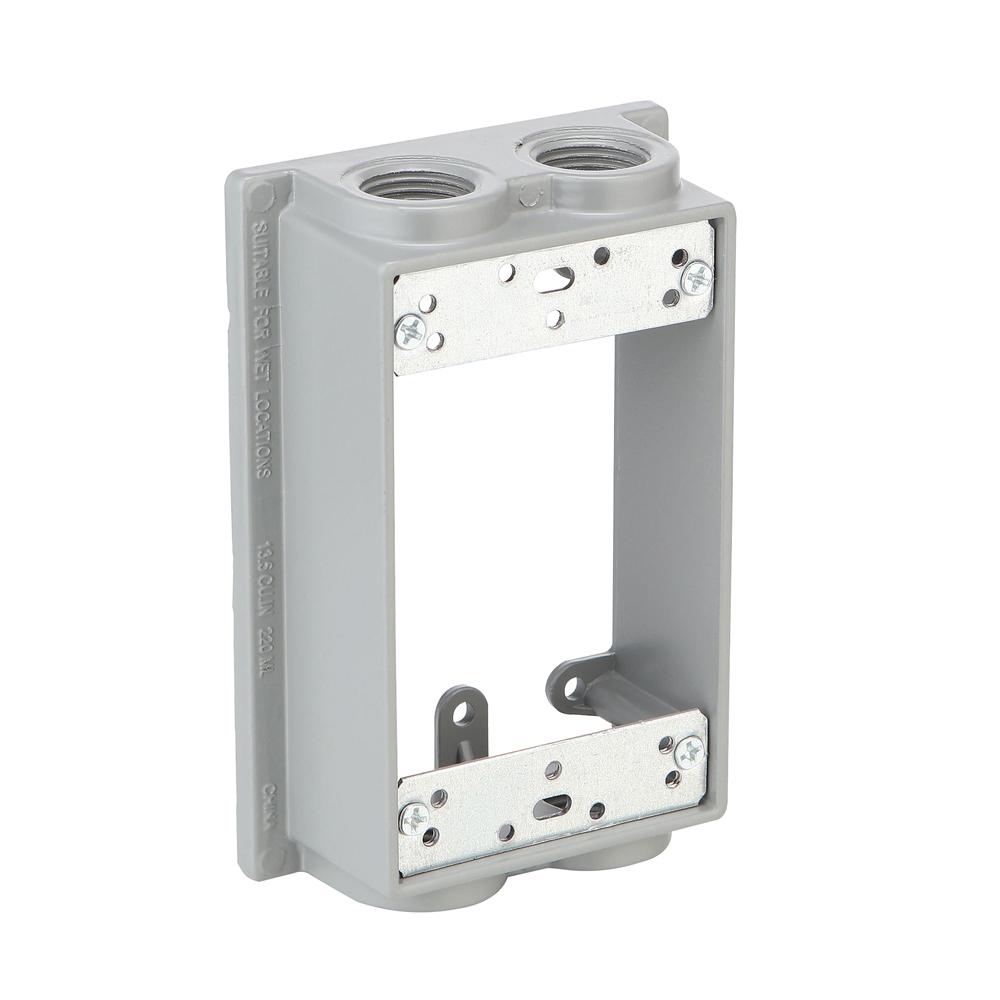

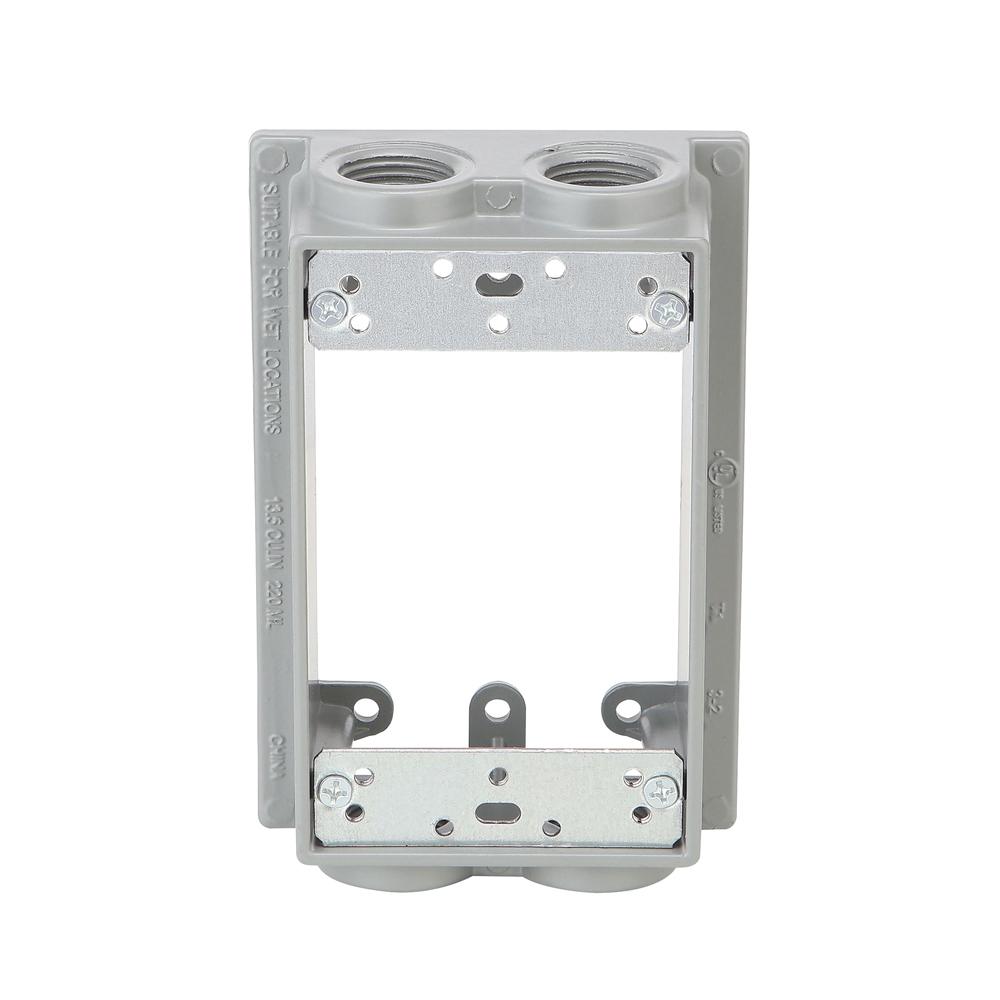

Titan3™ Weather-Proof Extension Ring, 4 Outlets, 1 Gangs, 4 Plugs, 4 Knockouts, 1/2 in Hub, Threaded Hub, 3-1/2 in Width, 1-9/16 in Depth, Rectangular Shape, Die Cast Construction, NEMA 3R Enclosure, Wall Mounting, 13.5 cu-in Capacity, Hub Connection, Metal Body, Gray, Finish: Powder-Coated, Additional Information: Indoor/Outdoor, 5.2 in H Dimensions
| Additional Information | : | Indoor/Outdoor, 5.2 in H Dimensions |
| Body Material | : | Metal |
| Capacity | : | 13.5 cu-in |
| Color | : | Gray |
| Connection Type | : | Hub |
| Construction | : | Die Cast |
| Depth | : | 1-9/16 in |
| Enclosure Type | : | NEMA 3R |
| Finish | : | Powder-Coated |
| Hub Size | : | 1/2 in |
| Hub Type | : | Threaded |
| Mounting Type | : | Wall |
| Number of Gangs | : | 1 |
| Number of Knockouts | : | 4 |
| Number of Outlets | : | 4 |
| Number of Plugs | : | 4 |
| Shape | : | Rectangular |
| Width | : | 3-1/2 in |
- Flanged design offers superior weatherproofing & easy install
- 1-Gang Box Extension Ring Capacity: 13.5 cu. in. (220 mL)

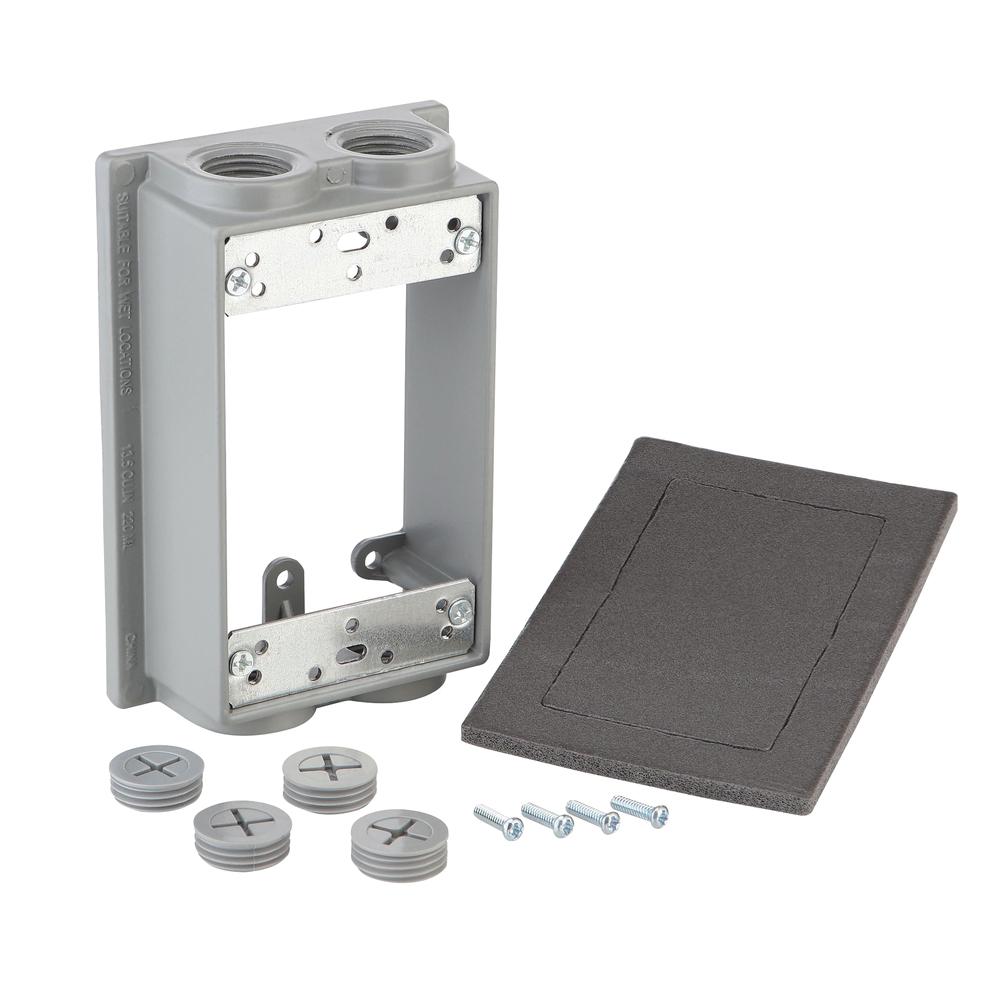

- Includes mounting screws (#6-32), gasket, & closure plugs (4)
- State of the art powder coat finish provides maximum weather ability and scratch-resistance
- Rugged die-cast construction
- Internal hub threads comply with NEMA requirements and will accept 0-1/2 in. threaded fittings and threaded conduit
- NEMA 3R compliant
