Metal weatherproof extension rings are designed for use in branch circuit wiring in wet, damp or dry locations. Extension rings house receptacles, switches and GFCI's. Extension rings mounted on boxes may also be used to increase the size of a weatherproof junction box. Installation hardware included.

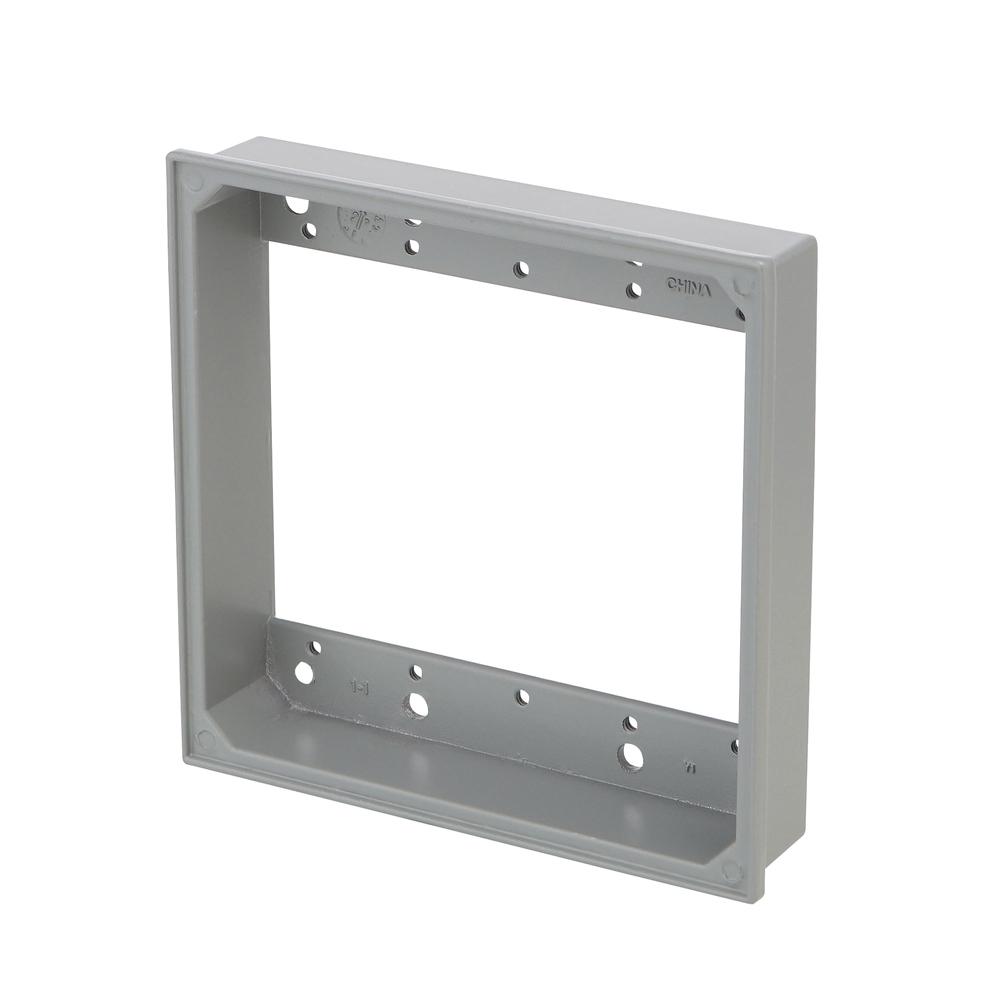

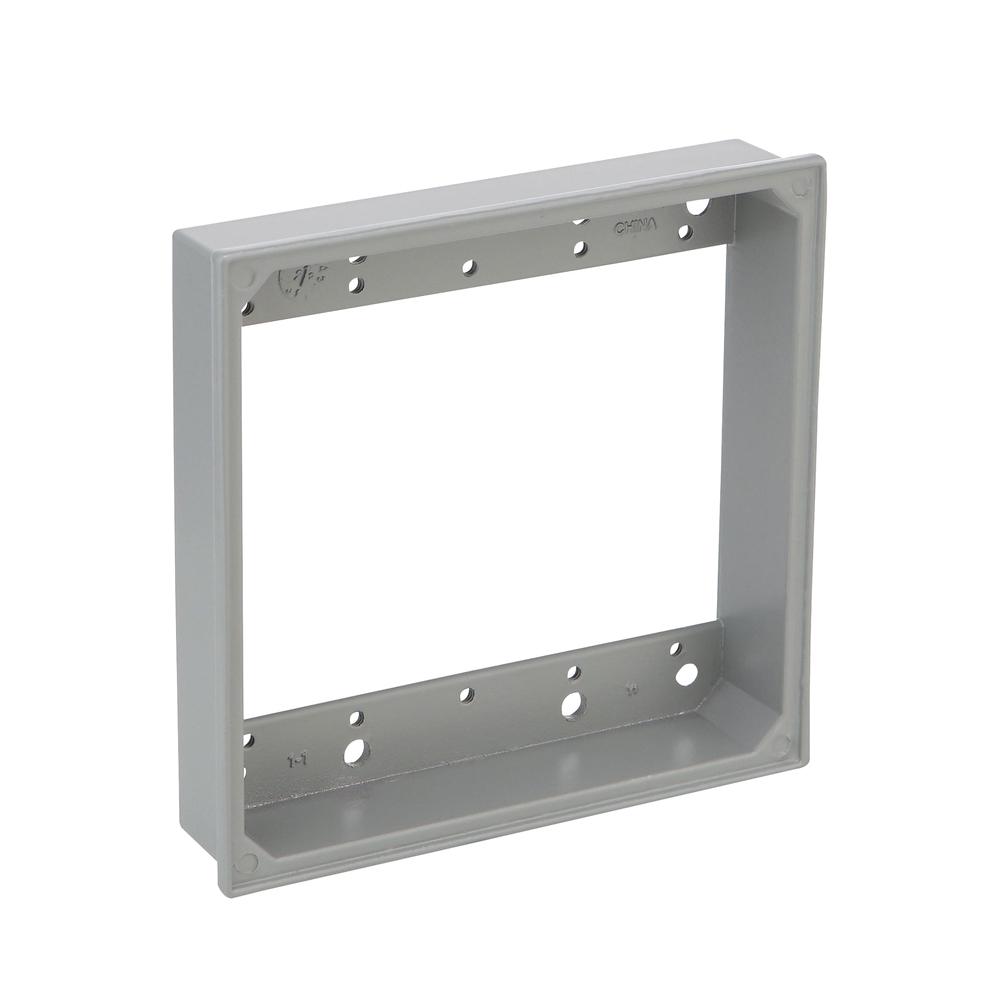

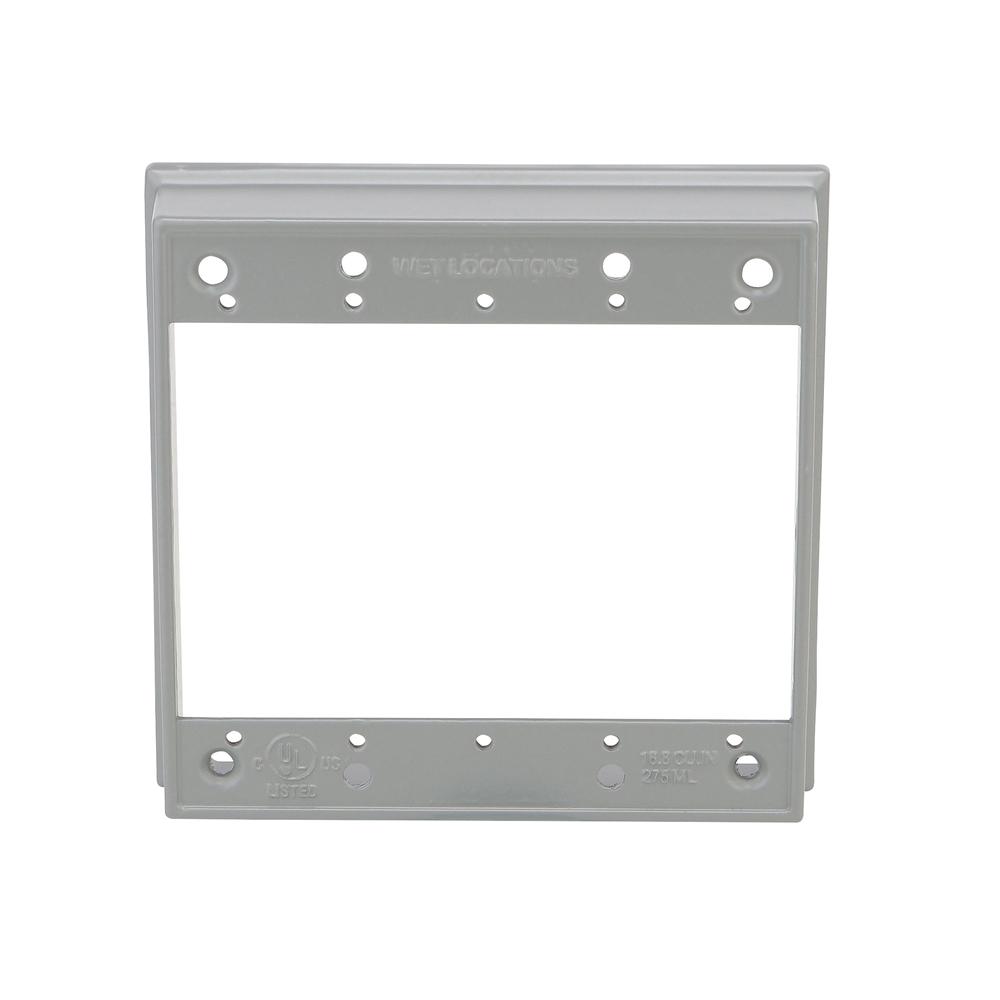

Titan3™ Weather-Proof Extension Ring, 2 Gangs, 4.8 in Width, 1 in Depth, Die Cast Construction, NEMA 3R Enclosure, Wall Mounting, 16.8 cu-in Capacity, Metal Body, Gray, Finish: Powder-Coated, Additional Information: Indoor/Outdoor, 4.7 in H Dimensions
| Additional Information | : | Indoor/Outdoor, 4.7 in H Dimensions |
| Body Material | : | Metal |
| Capacity | : | 16.8 cu-in |
| Color | : | Gray |
| Construction | : | Die Cast |
| Depth | : | 1 in |
| Enclosure Type | : | NEMA 3R |
| Finish | : | Powder-Coated |
| Mounting Type | : | Wall |
| Number of Gangs | : | 2 |
| Width | : | 4.8 in |
- Provides additional capacity needed for NEC box fill requirements
- 2-Gang Box Extension Ring Capacity: 16.8 cu. in. (275 mL)
- Includes mounting screws (#8-32) & gasket
- State of the art powder coat finish provides maximum weather ability and scratch-resistance
- Rugged die-cast construction
- No internal hub threads
- NEMA 3R compliant
