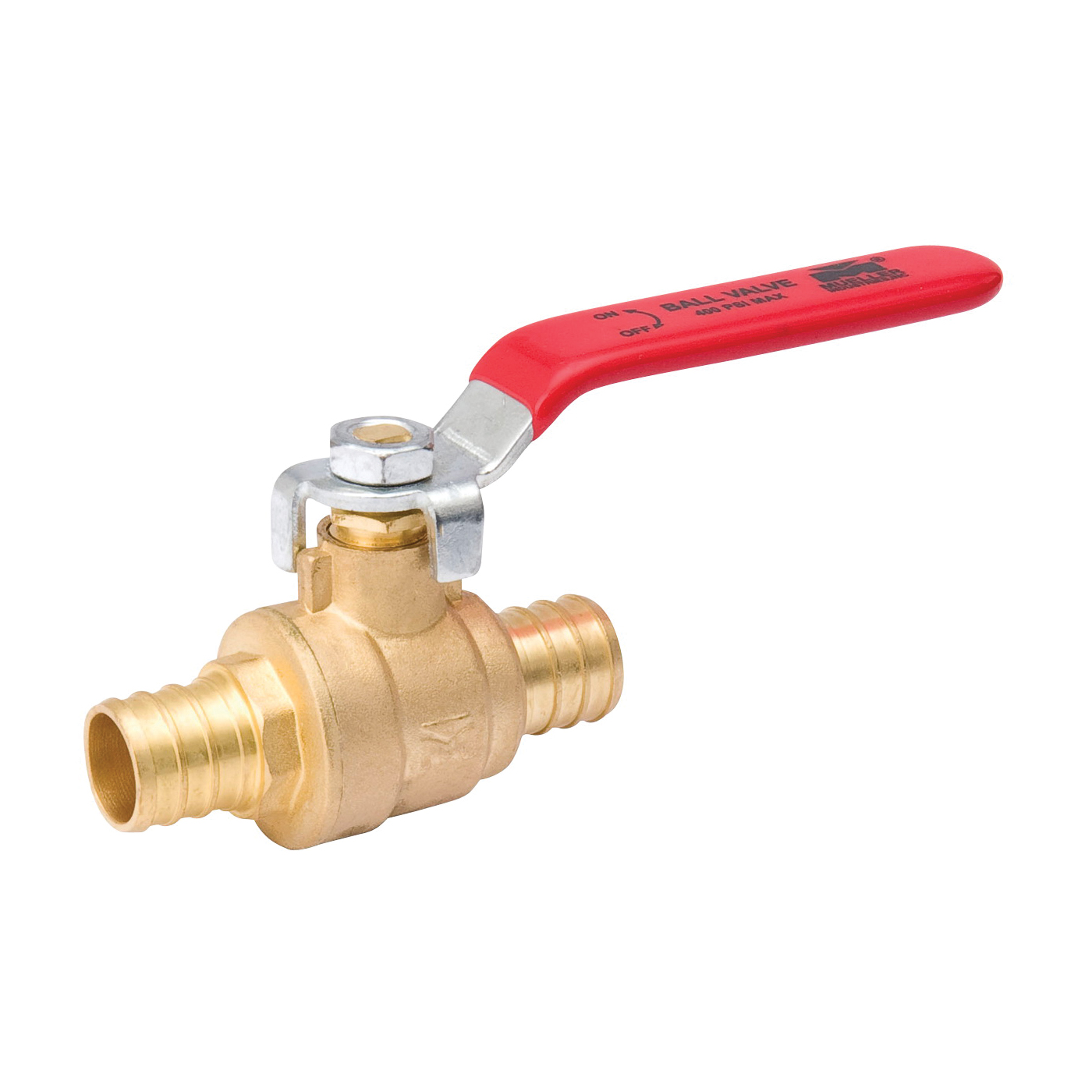

The 7690PX Series Ball Valve is made to work with PEX water systems that are being seen more and more in commercial and residential systems. Simple to install and providing the classic ball valve functionality, this valve offers full port functionality with smooth handle operation. This valve's PEX connection are F1807.
400 psi WOG, 160 psi at 73 deg F, full port, packing gland, PTFE seat and packing, chrome-plated brass ball and stem, ideal for use in potable water and radiant heating applications, PEX connections comply with ASTM F-1807, IAPMO listed to cUPC, certified to NSF 61-G.
| Body Material | : | Brass |
| Connection Size | : | 1/2 in |
| Connection Type | : | PEX x PEX |
| Finish | : | Chrome |
| Inlet Connection | : | F1960 PEX |
| Inlet Diameter | : | 1/2 in |
| Maximum Pressure | : | 400 psi |
| Media | : | Gas, Oil, Water |
| Minimum Temperature ��F | : | 33 |
| Number of Ports/Ways | : | 2 |
| Outlet Connection | : | F1960 PEX |
| Outlet Diameter | : | 1/2 in |
| Pressure Rating | : | 600/160 psi |
| Product Height | : | 2.07 in |
| Product Length | : | 4.84 in |
| Product Weight | : | 0.2337 lbs |
| Product Width | : | 0.87 in |
| Softgoods Material | : | PTFE |
| Temperature Rating | : | 73 deg F |
| Trim Material | : | Brass |
| Working Pressure | : | 72 psi |
- 400 PSI WOG
- 160 PSI @ 73°F (refer to PEX piping manufacturers guidelines)
- Full port for maximum flow rate
- Packing gland – blowout proof stem design
- PTFE discs and seats
- Chrome-plated brass ball & stem
- Rust-resistant heavy-duty handle with vinyl grip
- Fast & easy crimp installation into PEX piping systems
- Ideal for use in potable water & radiant heating applications
