BrassCraft® stainless steel braided water heater connectors bring installation versatility to a whole new level. Its flexibility allows you to easily connect water supply lines to water heaters in confined spaces. The exterior stainless steel braid creates a flexible and durable installation that requires no cutting or soldering. Featuring a reinforced PVC inner hose, the tough PVC tubing combats corrosive elements such as chlorine and chloramines. The integrated dielectric attributes eliminate the need to install an additional dielectric union, reducing time and installation costs.

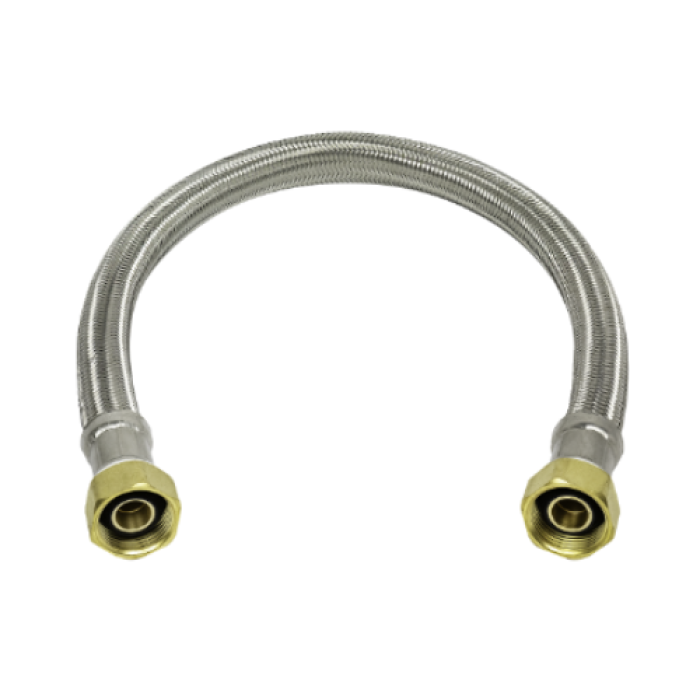

BrassCraft® Water Heater Connector, SBWB00 Series, 3/4 in Connection, FIP Connection, 24 in Length, 3/4 in Inside Diameter, Stainless Steel, 125 psi, 40 to 160 deg F, For Use With: Water Heaters
| Connection Size | : | 3/4 in |
| Connection Type | : | FIP |
| Inside Diameter | : | 3/4 in |
| Length | : | 24 in |
| Material | : | Stainless Steel |
| Pressure Rating | : | 125 PSI |
| Series | : | SBWB00 Series |
| Suitable For Use With | : | Water Heaters |
| Temperature Rating | : | 40 to 160 deg F, intermittent to 180 deg F |
- Braided stainless steel tube
- 3/4 in. FIP x 3/4 in. FIP
- Use to connect water supply to water heater
- Used to connect water heaters and other water connected devices to the water supply. Can be used with recirculating water systems that produce continuous use temperatures below 115°F.
- Nut provides a full thread engagement resulting in a secure connection
- No dielectric union needed with installation
- Brass hex nuts are plated for corrosion resistance
- Durable, flexible water heater connector requires no cutting or soldering during installation
- Stainless Steel
- The durable internal PVC tubing helps resist internal corrosion and mineral buildup
- For indoor use
- Temperature rating: 40° to 160° F, intermittent to 180° F
- Pressure rating: 125 PSI maximum
- No lead certified
- IAPMO listed to ASME A112.18.6/CSA B125.6 (includes NSF/ANSI372 and NSF61)
