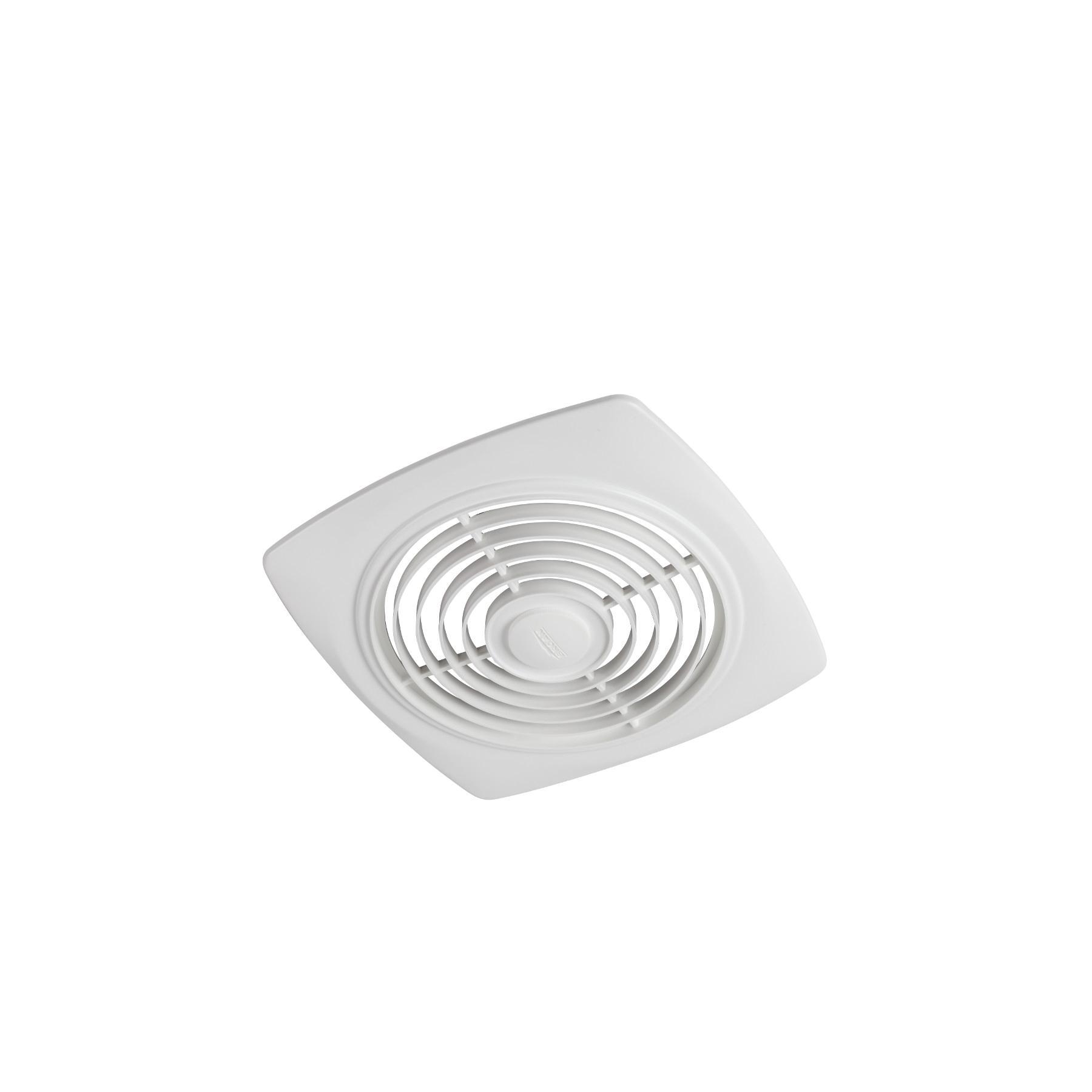

Broan-NuTone® Utility Ventilation Fan, 120 VAC, 0.9 A, 60 Hz, 25 ga Steel, Plastic, White, Wall Mount, 5-1/2 in Length, 11-1/2 in Width, 11-1/2 in Height, 13-1/2 in L x 13-1/2 in W Grille, 180 cfm, 1575 rpm Speed Rating
Amperage Rating |
: |
0.9 A |
CFM Rating |
: |
180 cfm |
Color |
: |
White |
Frequency Rating |
: |
60 Hz |
Grille Size |
: |
13-1/2 in L x 13-1/2 in W |
Height |
: |
11-1/2 in |
Length |
: |
5-1/2 in |
Material |
: |
25 ga Steel, Plastic |
Mounting Type |
: |
Wall |
Speed Rating |
: |
1575 rpm |
Voltage Rating |
: |
120 VAC |
Width |
: |
11-1/2 in |
- Utility Ventilation Fan
- Easily installs in interior walls to move heated or cooled air from one room to another, spreads heat from fireplaces, cool air from air conditioners to adjoining rooms

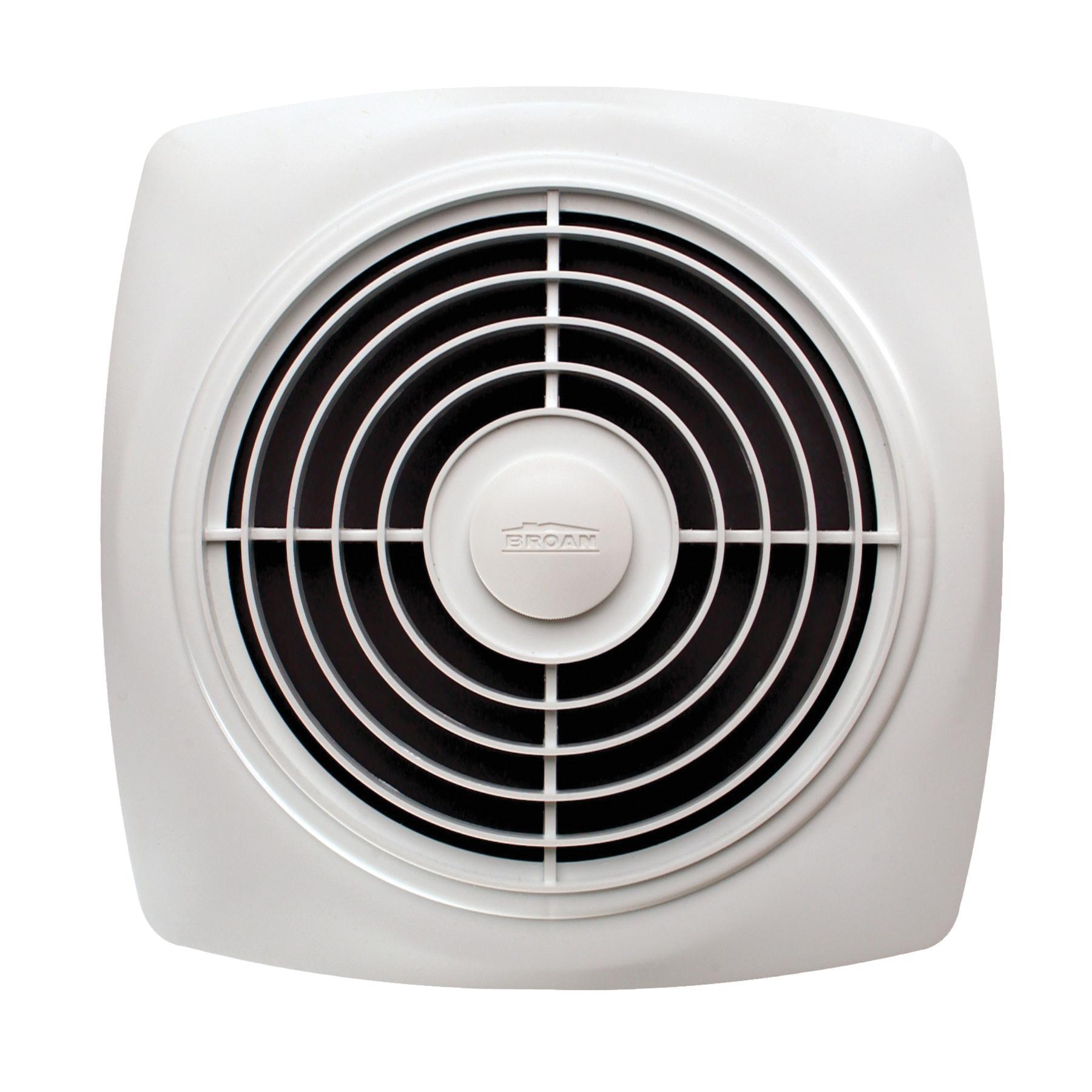

- Two attractive white polymeric grilles can be painted to match decor
- White polymeric grilles can be painted to match any decor
- Permanently lubricated, thermally protected, plug-in motor
- 25 ga steel housing finished with rugged black electrically-bonded epoxy paint
- Ventilator shall be steel housing finished with electrically-bonded epoxy paint
- High-strength, reinforced polymeric fan blade
- Motor assembly offers fast, easy "twist-lock" installation
- Requires 11-5/8 in square hole through both interior walls
- Solid state speed control for fan speed and sound level selection
- Housing can be fastened to walls in several ways - allows flexibility to meet almost any-mounting situation
- Adjustable housing fits walls from 3 - 5-1/2 in Thick
- Motor assembly shall be removable and permanently lubricated
- 4.5 sones sound
- Eliminate humidity from laundry rooms, tobacco smoke from recreation rooms and workshops or cooking fumes from kitchens with Broan's high-efficiency utility ventilators
-
Catalog
https://assets.unilogcorp.com/267/ITEM/DOC/Broan_511_Catalog.pdf
